A UV Ink Direct-to-Garment (DTG) printer is a type of printer that uses ultraviolet (UV) light to cure ink as it is printed directly onto the fabric. This technology allows for high-quality, durable prints with vibrant colors and fine details. The UV curing process solidifies the ink instantly, which helps in achieving sharper images and faster production times.
Versatile Printing Capabilities:
UV ink DTG printers can print on a wide range of materials, including cotton, polyester, blends, and even dark fabrics. This versatility makes them suitable for various applications, from fashion to promotional products.
Enhance your project
UV ink DTG printer can help to enhance 3D printing/Laser engraving printing value. Gives it a brilliant color effect. Can be used for puzzles, 3D printing texture carving, and other projects.
Precision and Detail:
UV ink DTG printers excel in printing detailed designs with fine lines and intricate patterns. The technology supports high-resolution printing, ensuring that even complex graphics and small text are rendered accurately.
Low Maintenance and Cost-Effective:
Compared to traditional screen printing, UV ink DTG printers require less setup time and minimal maintenance. This reduces operational costs and makes it easier for small businesses and startups to offer custom printing services with lower overheads.
-----------------------
DTF And DTG
--------------------------------------
Print Quality and Detail:
Superior Print Quality: DTG printers are known for producing high-resolution, detailed prints with vibrant colors. The ink is absorbed directly into the fabric, allowing for fine details and smooth gradients.
Soft Feel: DTG prints have a softer feel because the ink becomes part of the fabric, unlike DTF transfers which may have a slightly thicker feel due to the film layer.
Simplicity and Efficiency:
Direct Application:
DTG involves printing directly onto the garment, eliminating the need for additional transfer steps. This can simplify the production process and reduce the time needed to complete each item.
Less Handling: With DTG, there's no need to handle transfer films or powders, making the workflow more straightforward and reducing potential for errors.
Environmentally Friendly:
Eco-Friendly Inks: DTG typically uses water-based inks, which are generally considered more environmentally friendly compared to some of the chemical-based inks and adhesives used in DTF.
Less Waste: DTG can be more efficient in terms of ink usage and produces less waste, as there are no transfer films or excess powders to dispose of.
Best for Natural Fibers:
Optimal for Cotton and Natural Blends: DTG excels at printing on natural fibers such as cotton, providing excellent color vibrancy and washability on these materials.
Ideal for Small Batches and Customization:
Customization: DTG is ideal for on-demand printing and customization. It’s perfect for small batches or single-item orders, as it doesn’t require the setup and preparation associated with other printing methods.
Faster Turnaround: Since there is no need to create and apply a transfer, DTG can offer faster turnaround times for small orders or custom designs.
Color Range and Gradients:
Better Color Range: DTG can produce a wider range of colors and better handle gradients and complex color transitions compared to DTF.

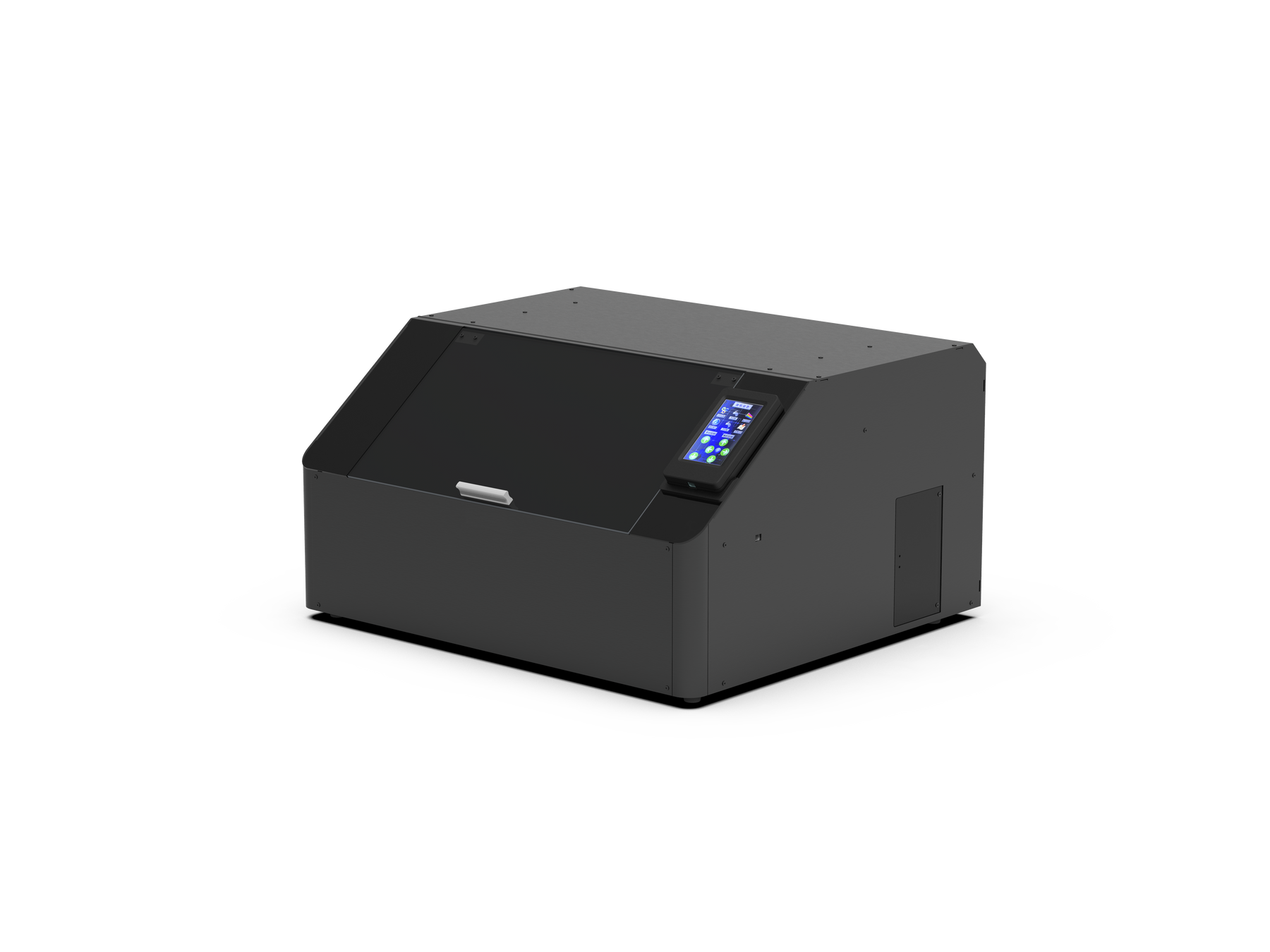

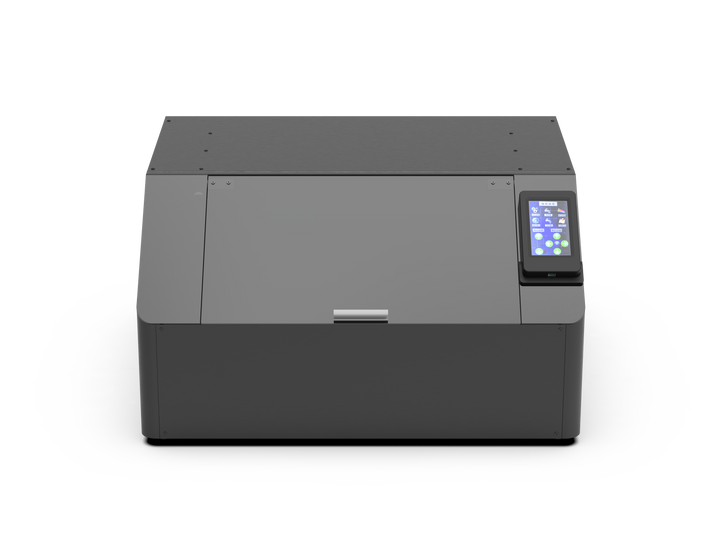

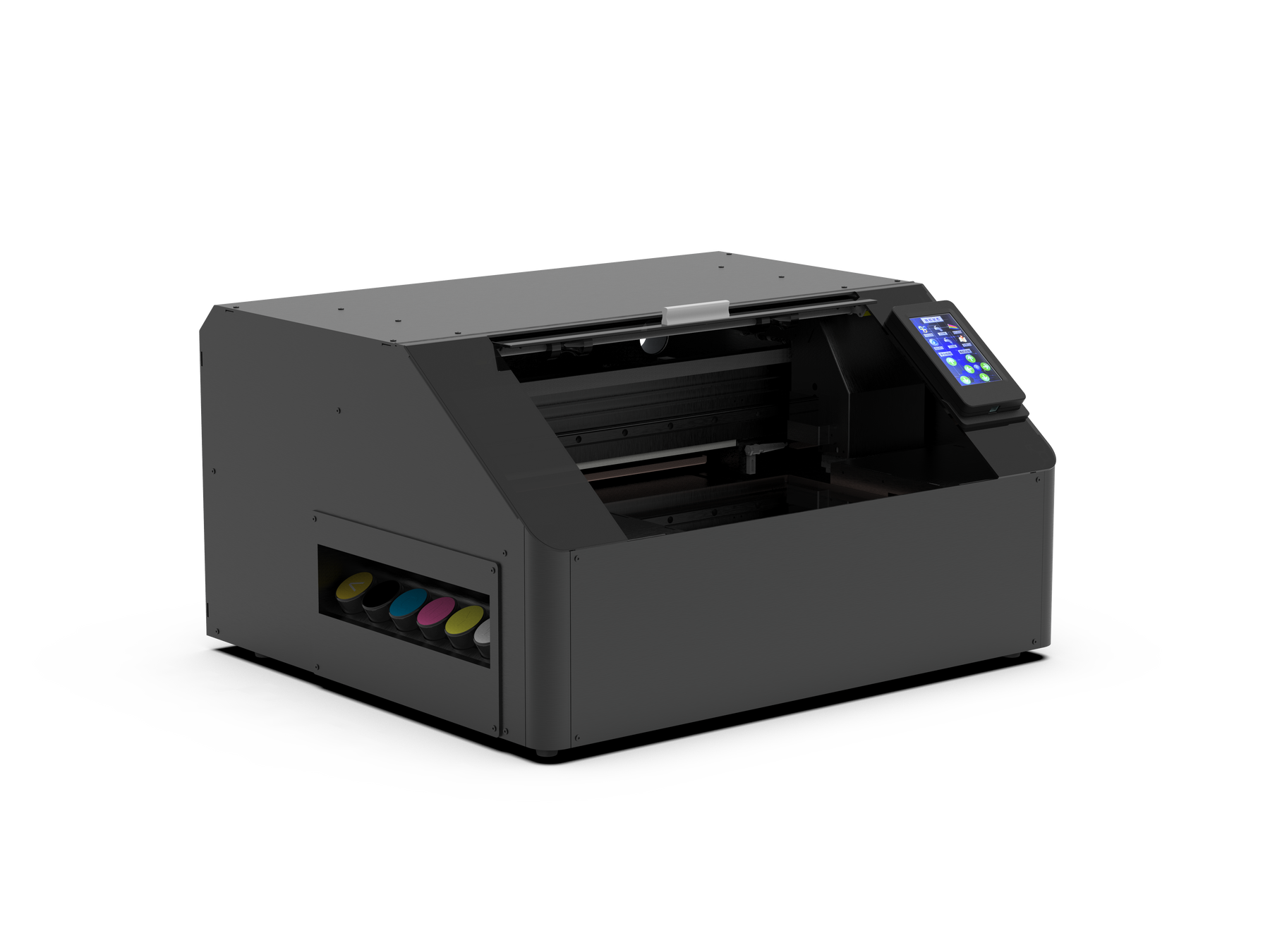

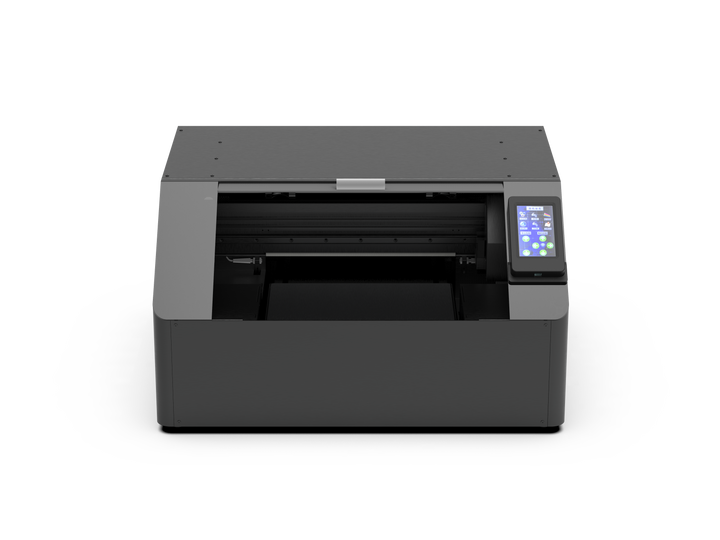

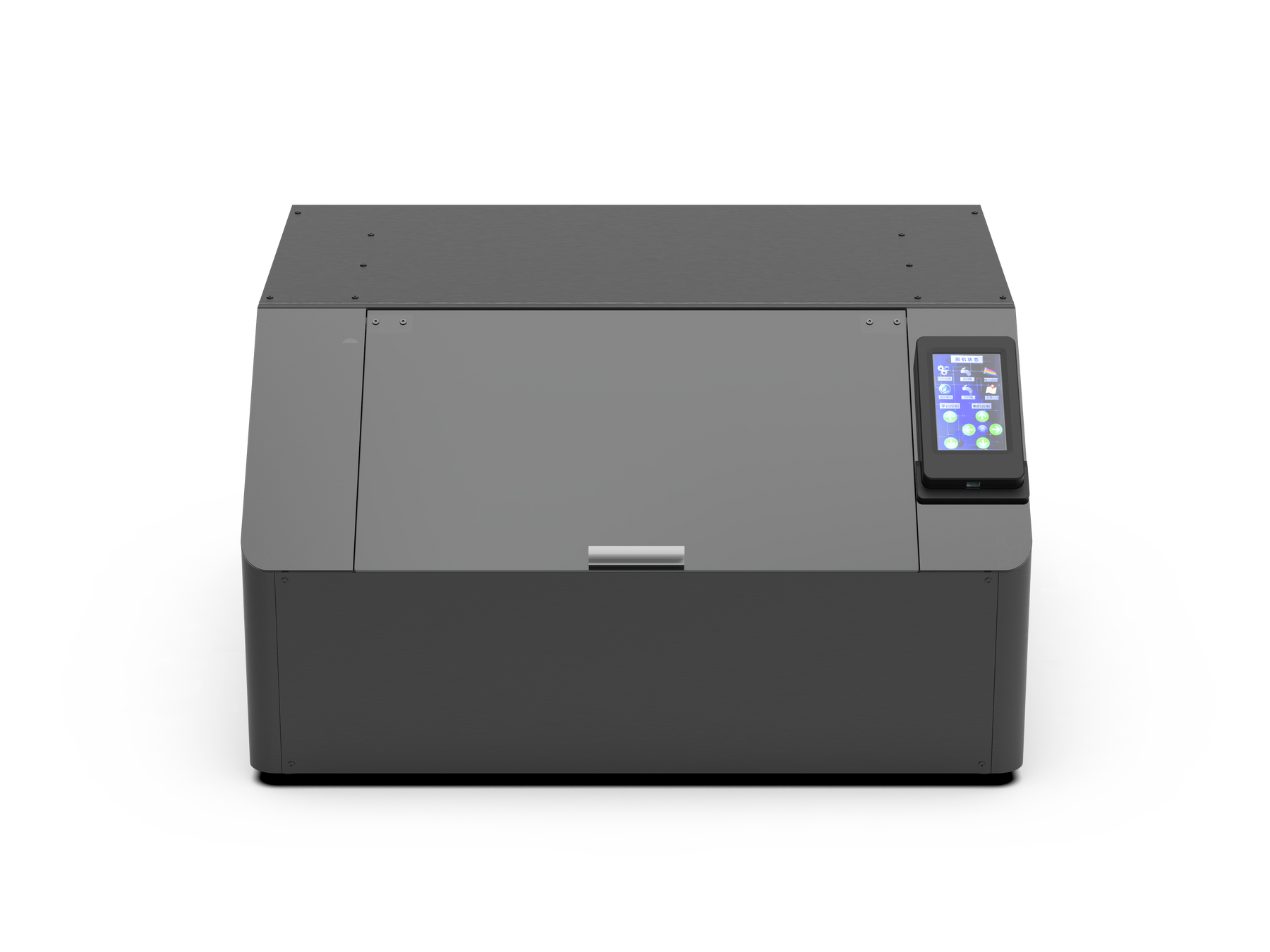

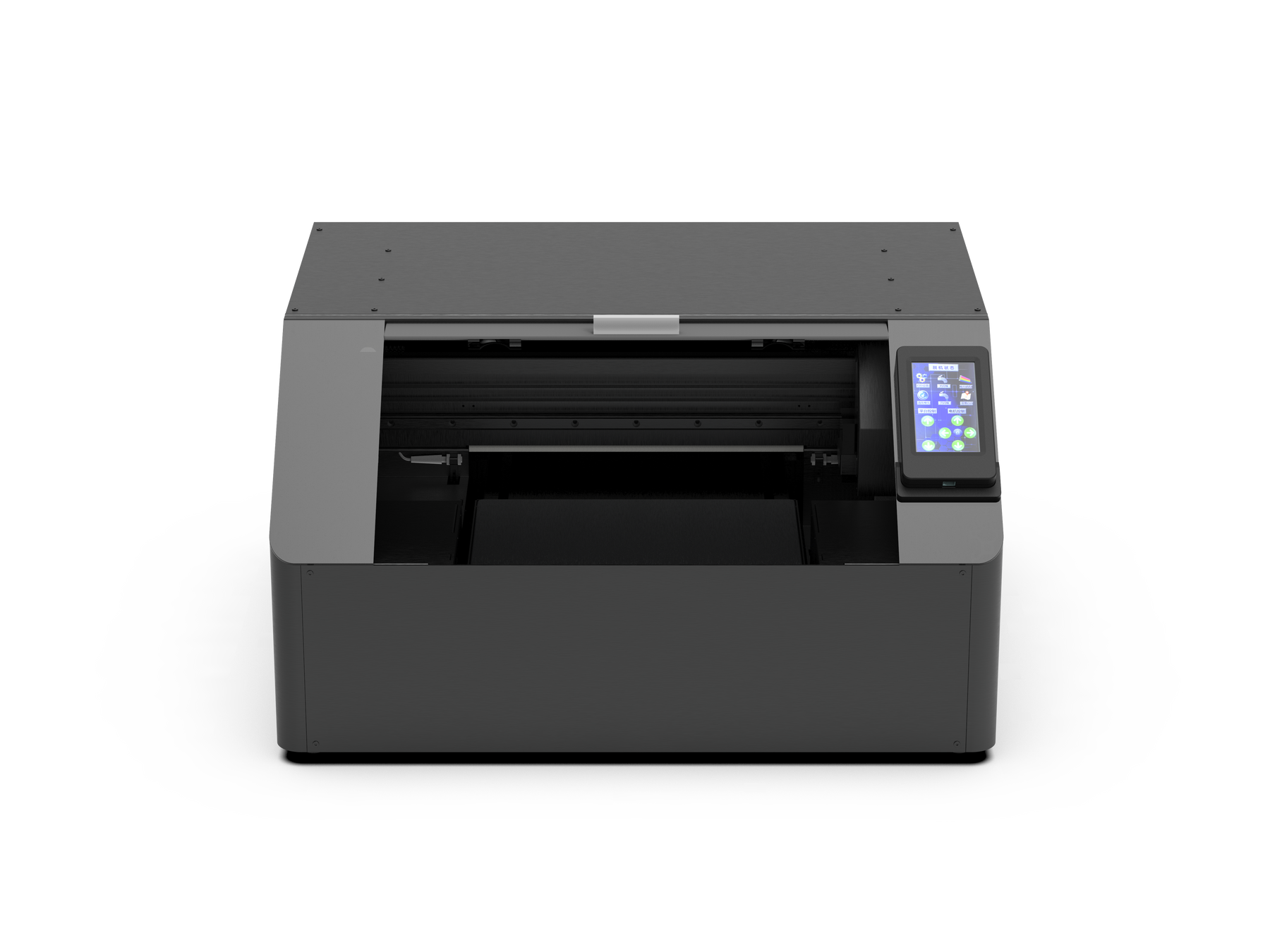

UV Ink Printer 2030
Size: A4+
Net weight: about 26KG
Gross weight: about 40KG (depending on accessories, the amount of ink) Product size: about 58*37*36CM (length, width and height) Wooden box size: about 64*53*50CM (length, width and height)
Printing size: about 20*30CM (can print multiple products at the same time)
Ink system: 1L*4 colors/250ML*white, white ink circulation stirring (to prevent precipitation)
Nozzle configuration: Epson TX800 nozzle system
Interface: USB interface
Printing method: DTG Printing
color: W white + C cyan + M magenta + Y yellow + K black
Ink type: UV ink Lifting function: intelligent lifting platform
Printing height: about 5CM (infrared intelligent height measurement)
Printing software: Rinn special software
Power requirements: AC220/110+10, 50~60Hz, ~100W
Ink supply system: software automatic ink supply/scatter spray + automatic cleaning
Operating system: Windows system
UV Ink Printer 3360
Model: A3 dual-inkjet-nozzle UV printer
Net weight: about 80KG
Gross weight: about 90KG (depending on accessories, the amount of ink is uncertain)
Dimensions: about 870*840*640mm (length, width and height)
Case size: about 950*950*873mm (length, width and height)
Printing size: about 330*600mm (multiple products can be printed at the same time)
Ink system: 1L*4 colors/250ML*white, white ink circulation stirring (to prevent precipitation)
Nozzle configuration: EPSON Nozzle System
Interface: USB port
Printing method: chassis, fixed head
Printing function: white varnish effect
Printing color: W white + C cyan + M magenta + Y yellow + K black
Ink type: UV ink
Printing height: about 18cm (infrared intelligent height measurement)
Lifting function: Intelligent lifting platform
Power requirements: AC220/110,50-60Hz, 100W
System support: Windows
